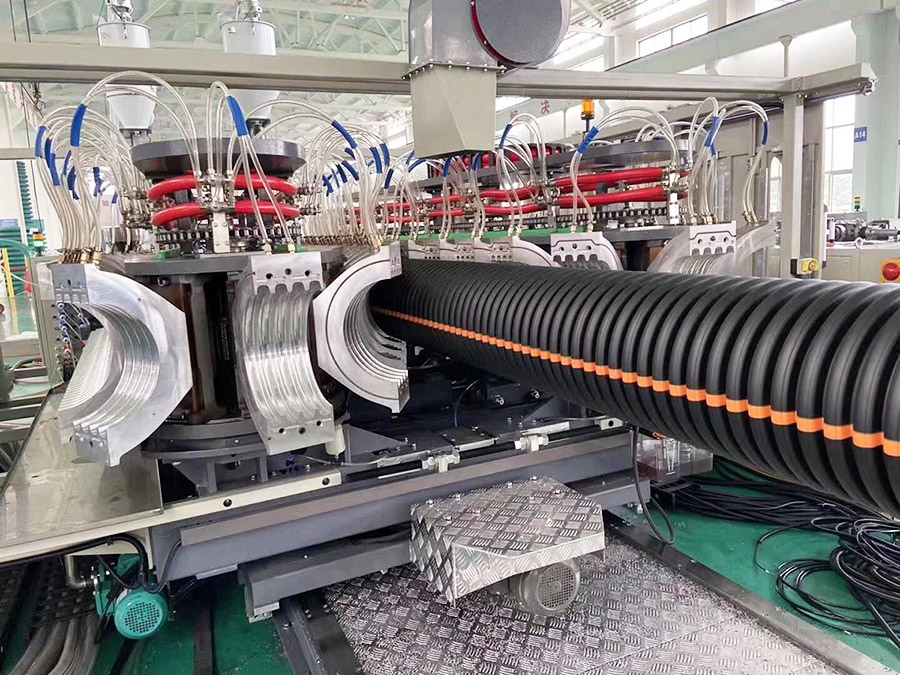

HDPE/PP Double-Wall Corrugated Pipe Extrusion Line
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail
Our Double-wall Corrugated Pipe Extrusion Line can produce HDPE Corrugaged Pipe and PP Corrugated Pipe. You can get free quotation at good price !
- Pipe Diameter Range: 63mm ~1200mm
- Output Range: 250kg/h ~ 1800kg/h
- Structure Type: Horizontal, Vertical, Shuttle
High efficient Single Screw Extruder, Screw and barrel, German technology
Screw: 38CrMoAlA, nitride and polishing treatment
Barrel: 38CrMoALA,nitrogen treatment, coercion water cooling in feeding parts
Gear box: High torque, low noise, specific gear box.
Control System Hardware from Siemens Professional software system of XINRONG Menu with English version Human-friendly interface make the operation easily and conveniently. 10.4’’liquid crystal displayer New generation programmable computer control system Modularization of temperature control Operation panel with pellicle switch Equipped with measuring system of melt temperature and pressure. Set, modify, inspect and memory the extruder rotating speed, melt pressure, melt temperature, each section temperature and forming speed.
Main Specifications:
|
Model |
Structure |
Material |
Pipe Range(mm) |
Output Capacity |

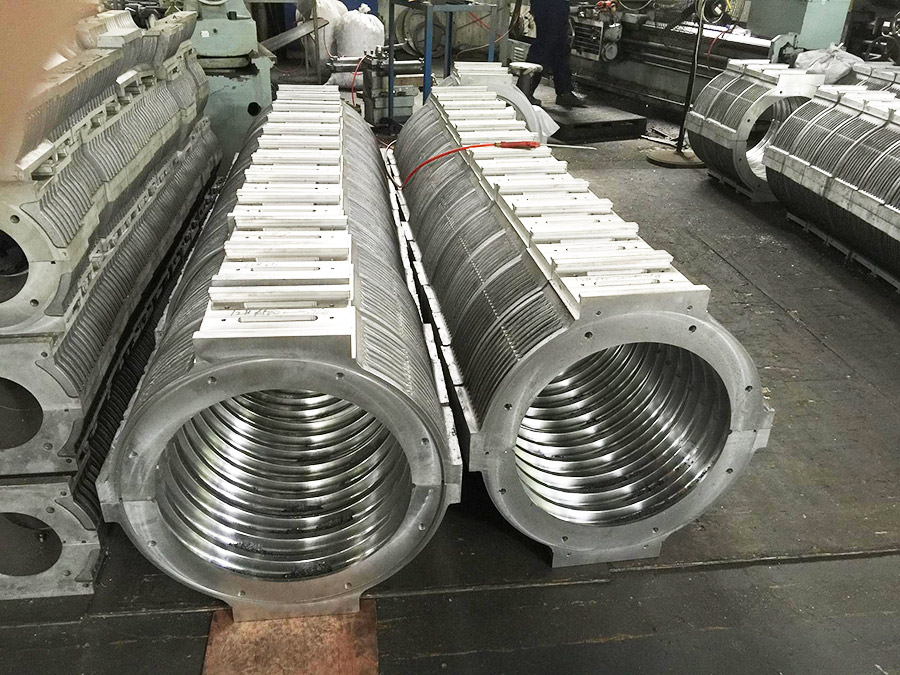

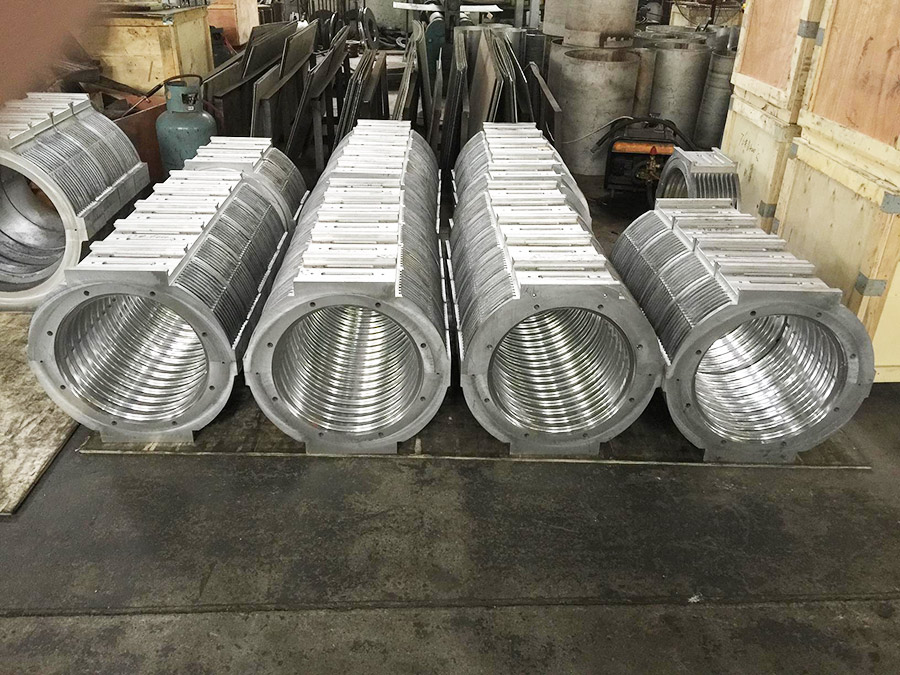

Corrugator |
|
|
ID(min) |
ID(max) |
(kg∕h) |
(m∕min) |
|||
|
PE160 |
Horizontal |
HDPE/PP |
63 |
160 |
300-400 |
0.7-7 |
|
PE250 |
Horizontal |
HDPE/PP |
75 |
250 |
450-600 |
0.5-5 |
|
PE400 |
Horizontal |
HDPE/PP |
200 |
400 |
500-700 |
0.5-5 |
|
PE600 |
Vertical |
HDPE/PP |
200 |
600 |
800-1000 |
0.32-3.2 |
|
PE800 |
Vertical |
HDPE/PP |
200 |
800 |
1100-1300 |
0.32-3.2 |
|
PE800 |
Shuttle |
HDPE/PP |
500 |
800 |
1100-1300 |
0.32-3.2 |
|
SPE1200 |
Shuttle |
HDPE/PP |
800 |
1200 |
1500-1700 |
0.2-2 |
