Two cavity PVC pipe extrusion line
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail
Product Description

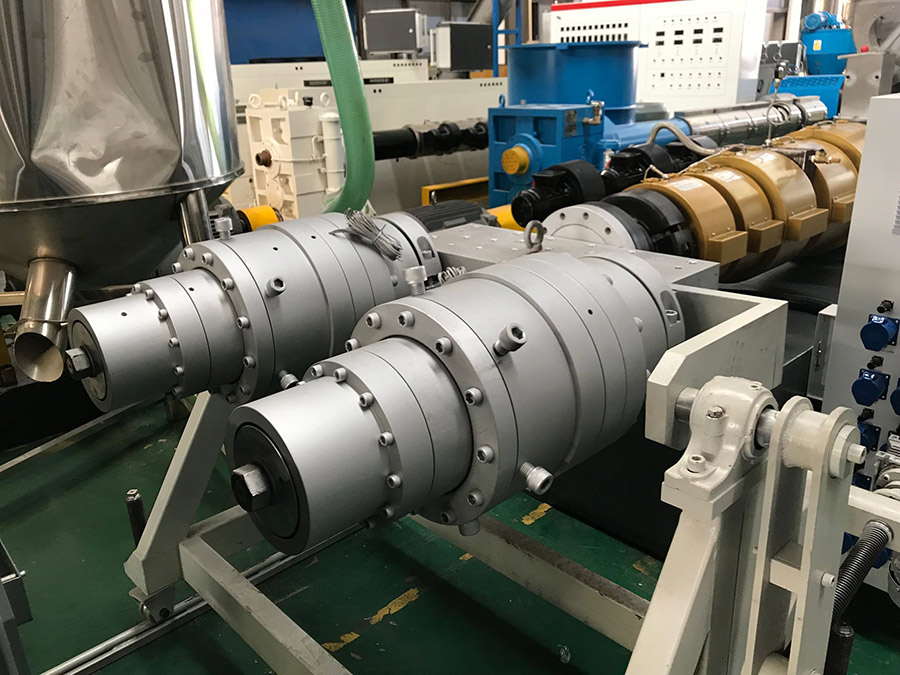

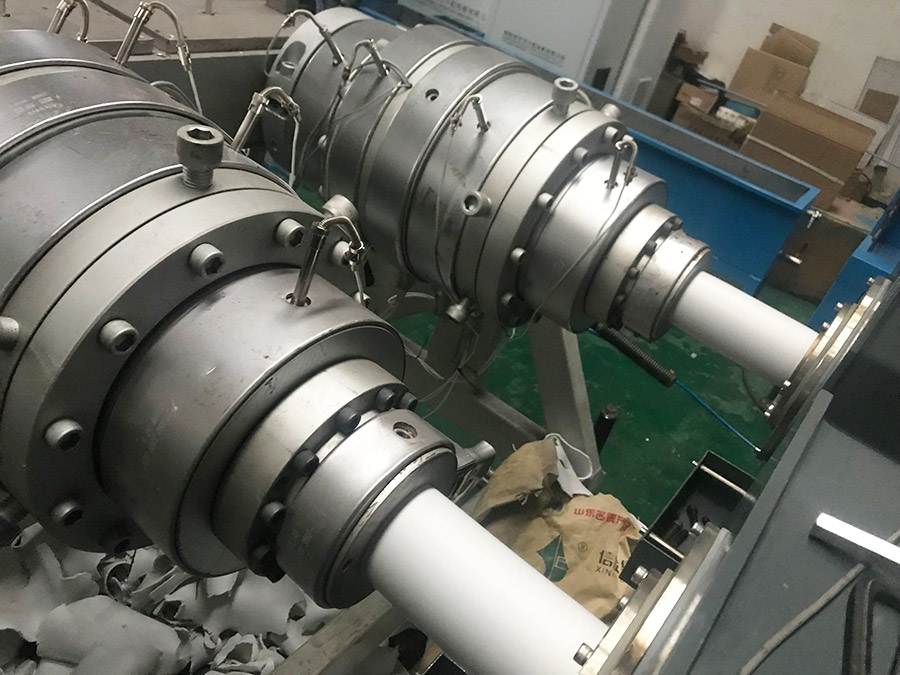

2 cavity PVC pipe extruder machine is mainly used in the manufacturer of PVC conduit pipes with various tube diameters and wall thickness ;This whole set is composed of conical twin-screw extruder,vacuum calibration tank, hual-off machine,cutter, stacker etc.
The whole production line also can equip online pipe socket/belling machine.
Electric control system can be PLC touch screen operation or by PID control.
Specification
| Name of machine |
two cavity PVC pipe extrusion line |
|

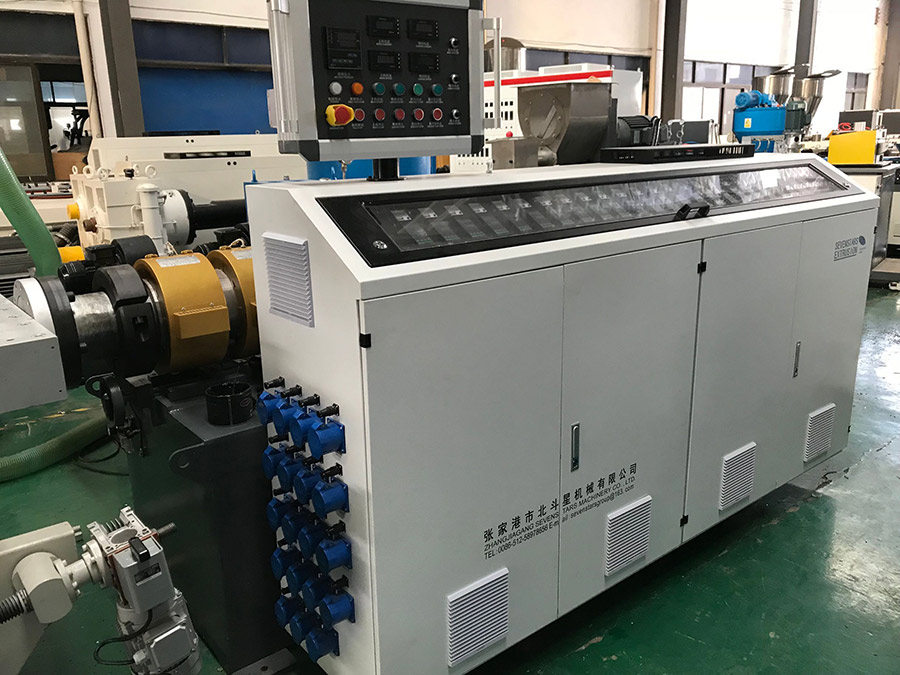

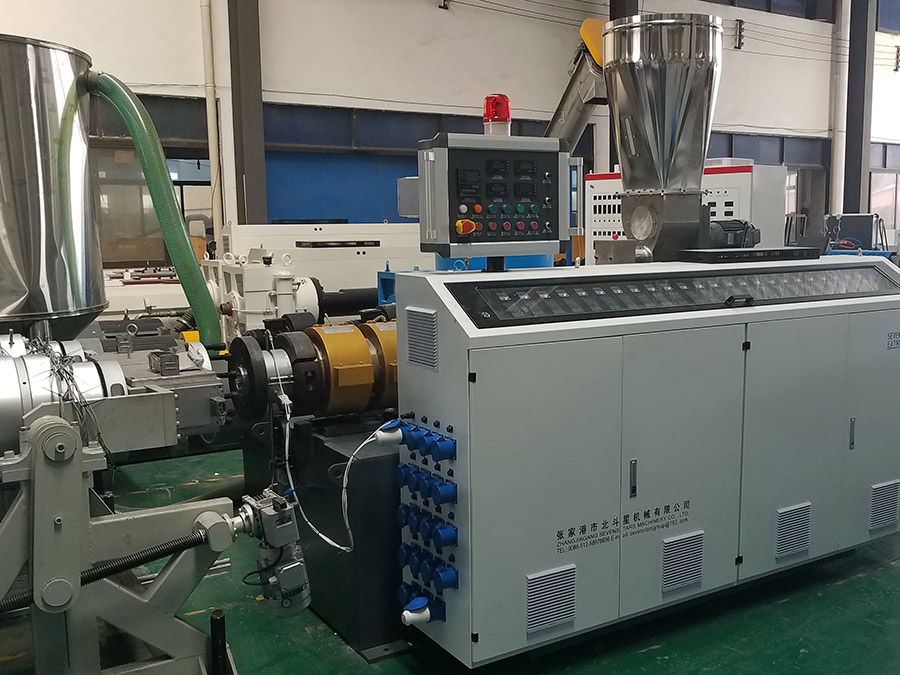

Extruder model |
SJSZ65/132 Conical twin screw extruder |
|
Production capacity |
250-350kg/hour |
|
Suitable pipe diameter |
Φ16mm, Φ 20mm, Φ 25mm, Φ 32mm, Φ 40mm, Φ 50mm, Φ 63mm |
|

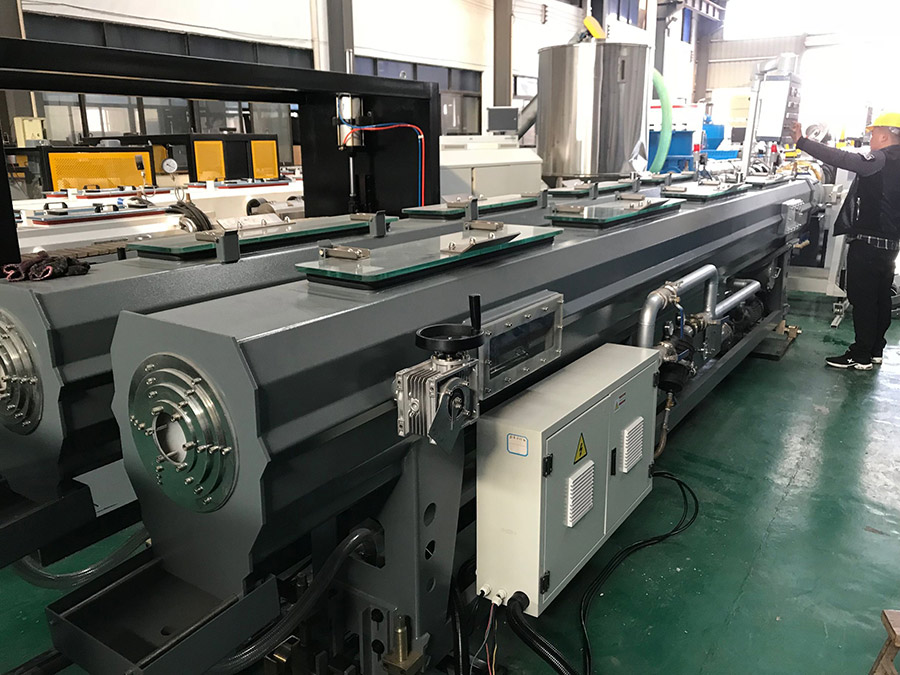

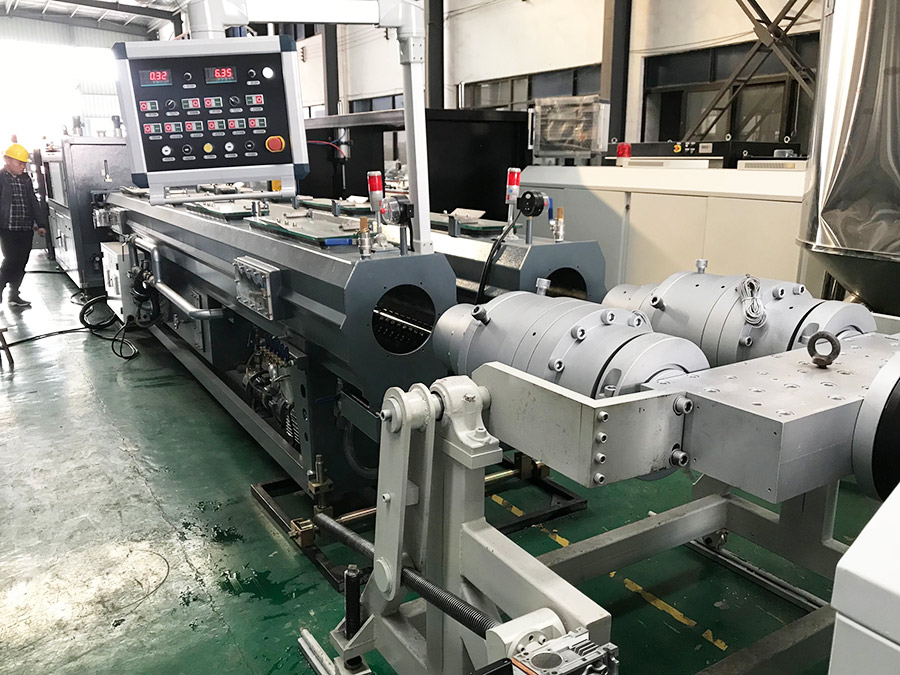

Vacuum calibration tank |
twin vacuum tank |
|

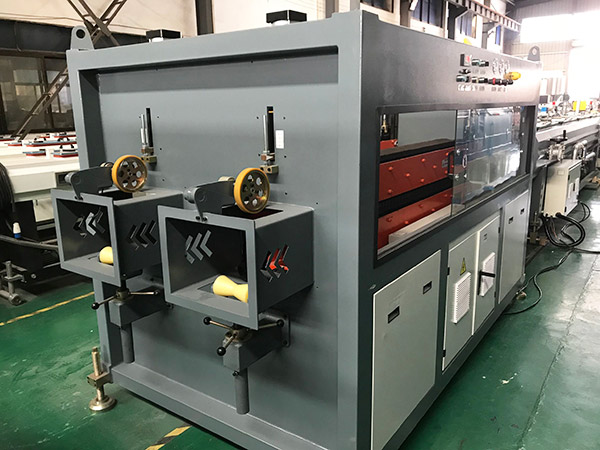

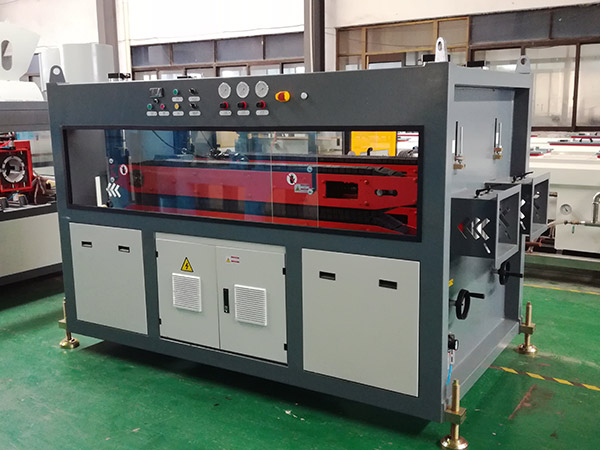

Haul-offs |
double belt puller |
|
Cutting |
double Non-sawdust cutting machine |
