PVC Cable Trunk Production Line
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail
Product Processing Flow:

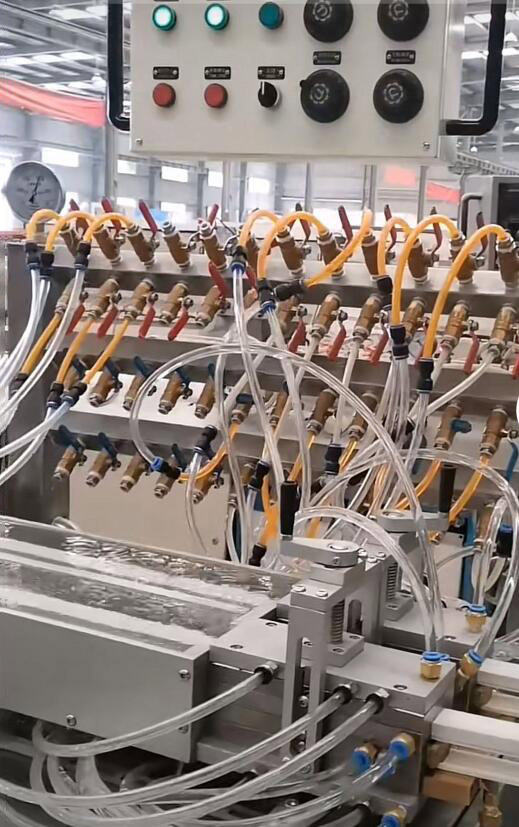

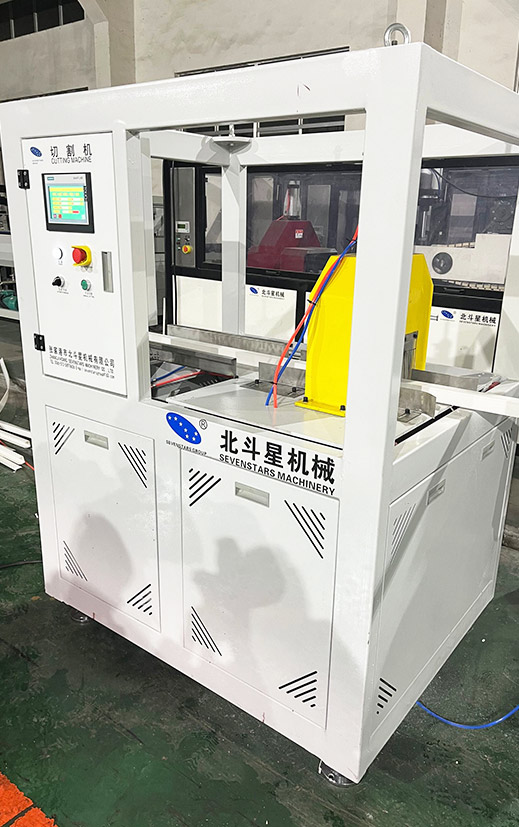

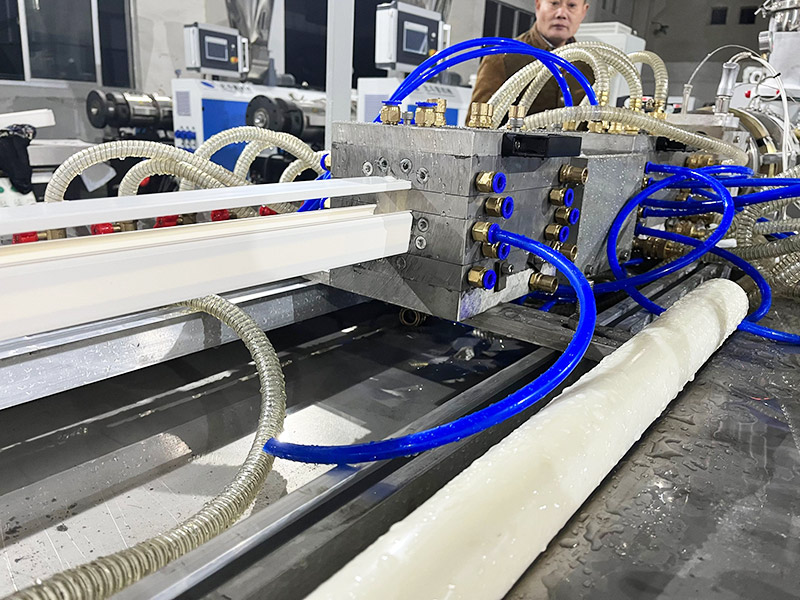

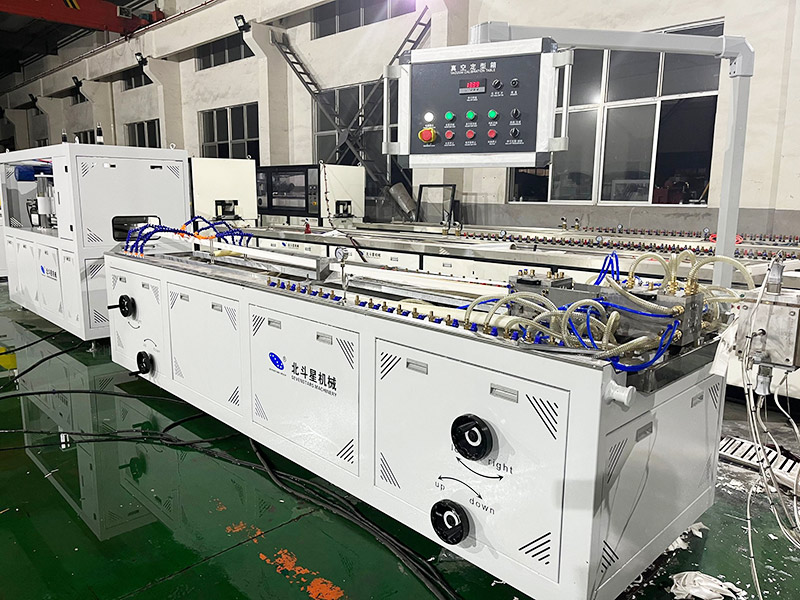

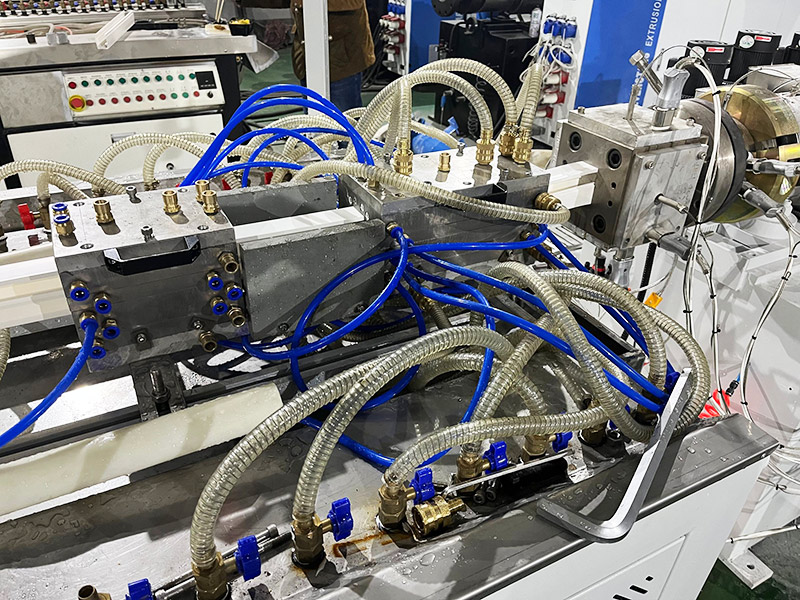

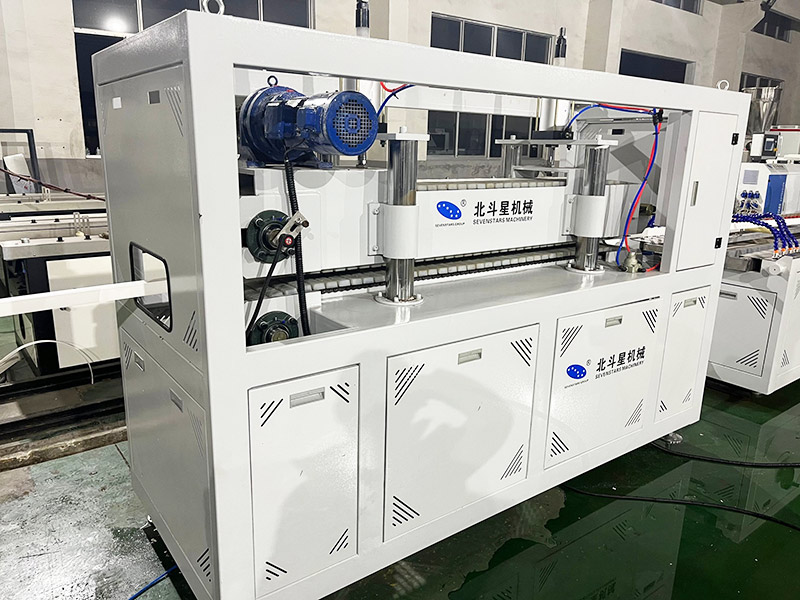

Raw material+Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibrating bath → Belt haul off → Cutter → Tilting stacker → Finished product inspecting and packing

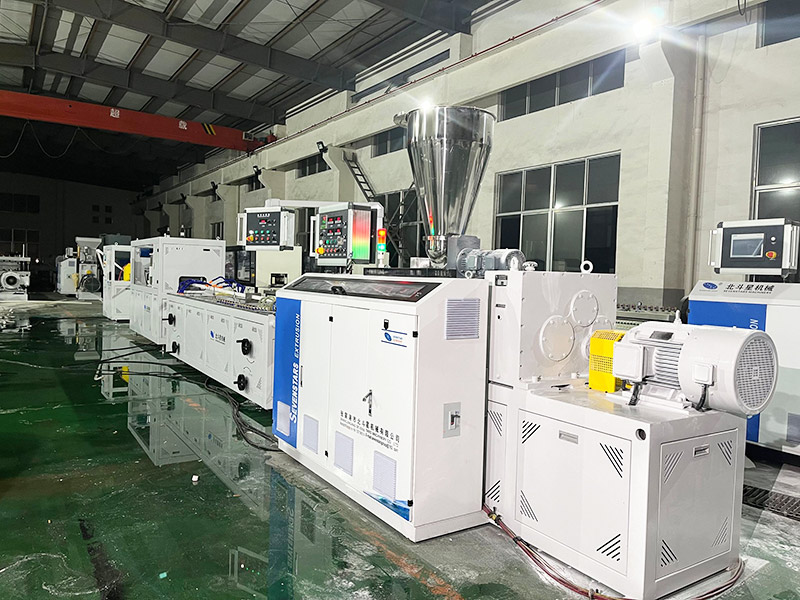

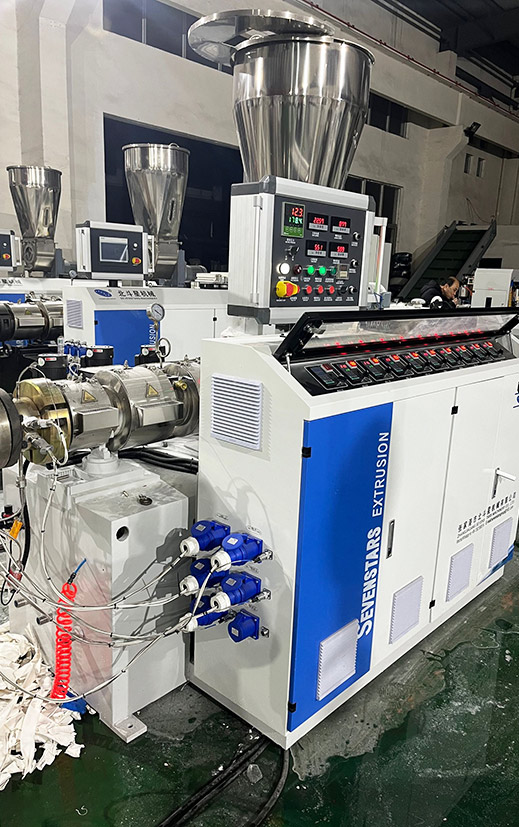

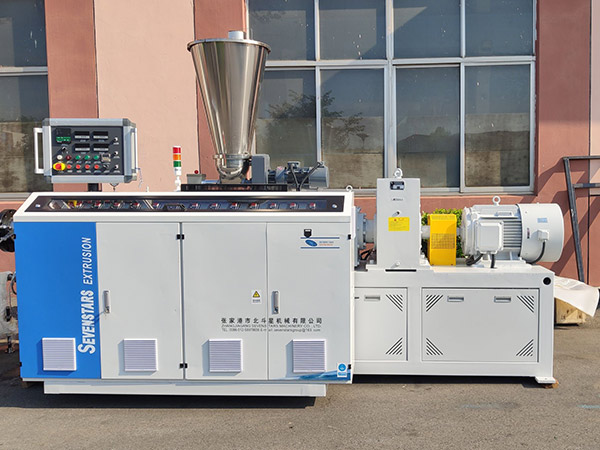

1. Normally PVC Cable Trunk Production Line uses SJSZ-51/105 or SJSZ65/132 Conical Twin Screw Extruder to produce double trunk or single trunk,and the specification refers to client's requirement.
2. This extrusion line also can manufacture other customized shapes of PVC profiles.
3. If change to single screw extruder, this line can make PE, PP, ABS profile
Technical Parameters:
| Model |
Product dimension (w×h)mm |
Extruder model |
Output(kg/h) |
Max speed (m/min) |
Install power (kw) |
Main motor power(KW) |
Length of line(m) |
|
SJYF-180 |
180×60 |
SJSZ51/105 |
80-120 |
6 |
55 |
22 |
23 |
|
SJYF-240 |
240×120 |
SJSZ65/132 |
140-180 |
4 |
76 |
25 |
