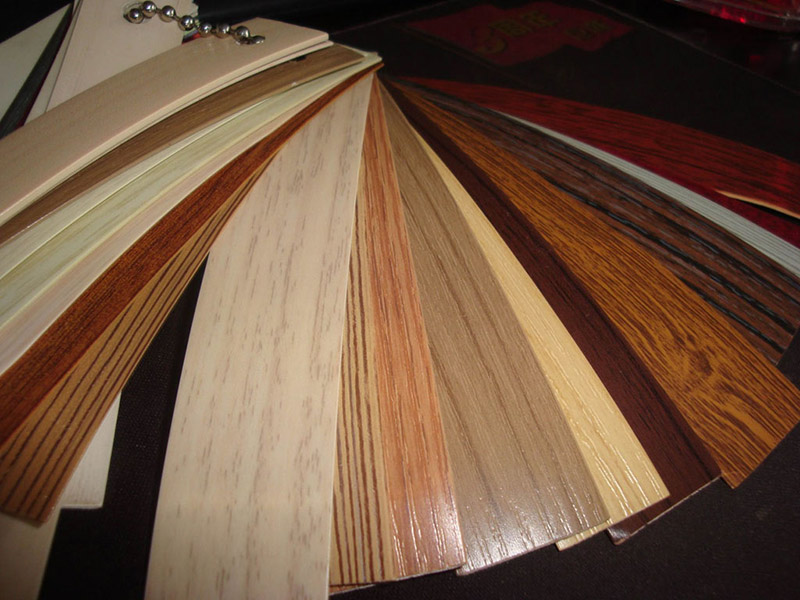

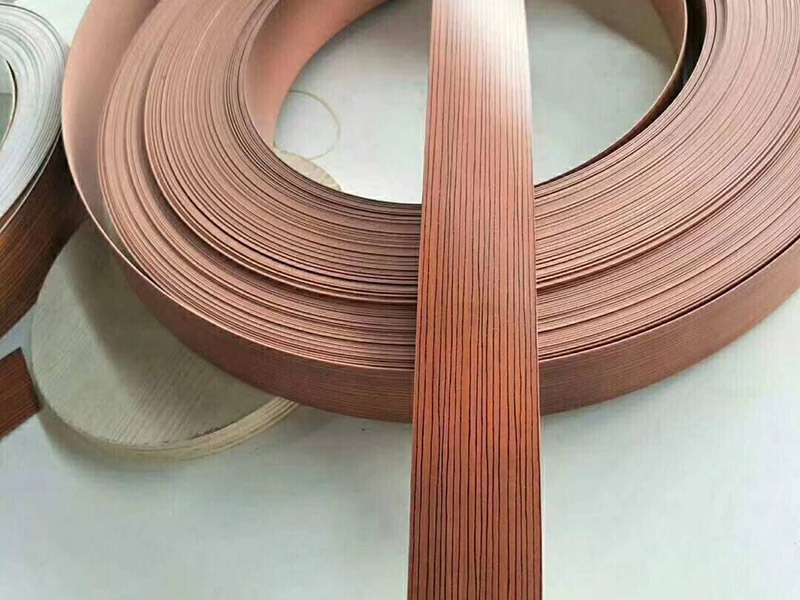

PVC edge band machine adopts twin screw extruder and directly process PVC powder form material, it can produce various PVC edge band with various width and thickness by switching the molds. And the PVC edge band printing machine can print various colors and designs to match with the color and designs of board.

Main Features:
1. Double screw dosing feeding, stable and high efficient
2. Adopt famous well-known brand inverter and contractor, excellent and reliable performance

Three ways of PVC edge band production line:

1. Mixer+ PVC granulating machine+single screw extruder+printing machine
Process: First you need mix raw material together by PVC mixer, second make granule by granulating machine, and then Use single screw extruder
(Sj45 or SJ65 single screw extruder) to get edge band, then use printing machine to get glossy surface or wooden design and etc.

Model and parameters:

Model	Extruder model	Mould Cavity	Max Output(kg/h)	Drive Motor Power(kw)
SJ45	SJ45	Single	700kg/day	11kw
SJ65	SJ65	Double	1200kg/day	15kw

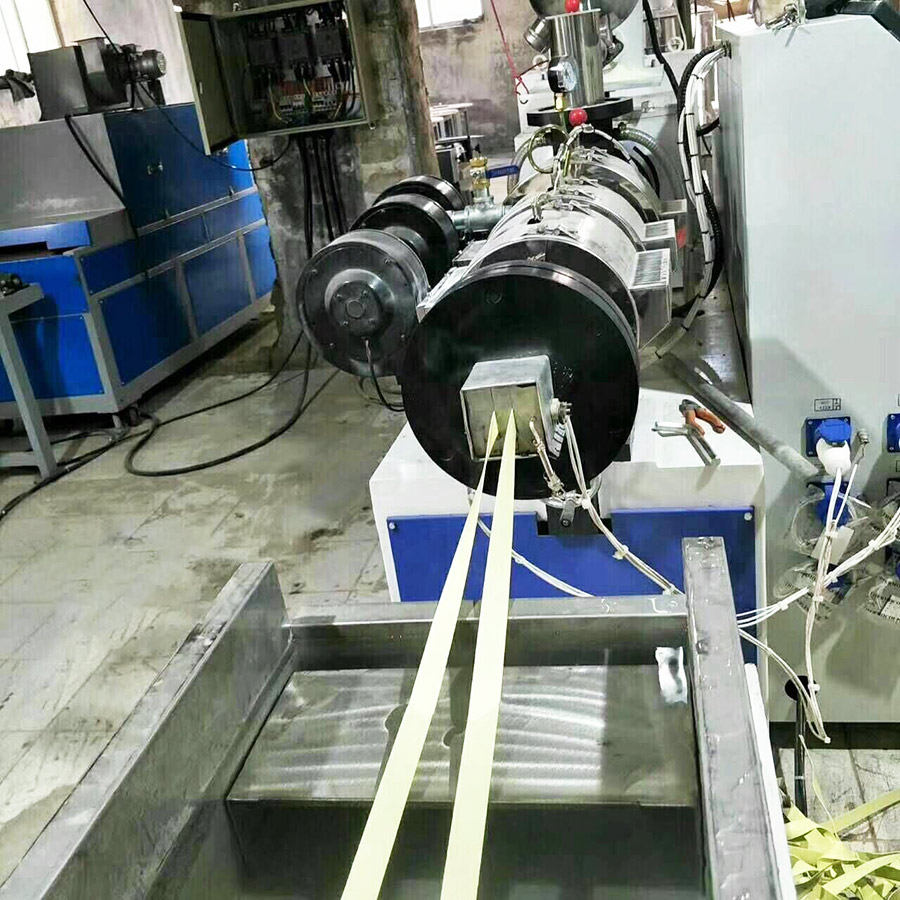

2. Mixer+Double screw extruder+ printing machine
Process: First mix raw material together by mixer, and the use double screw extruder(SJSZ51/105 or SJSZ55/110) to produce egde band, final step is to print color or make edge band glossy.

Model and parameters:

Model	Extruder model	Mould Cavity	Max Output(kg/h)	Drive Motor Power(kw)
SJSZ51	SJSZ51	6cavity	2200kg/day	15kw
SJSZ65	SJSZ65	8cavity	3500kg/day	22kw

3. Three calender system+ printing machine+cutting machine:
First mix raw material, and then use three calender system to produce big width edge band sheet, and then print colors on the edge band, finally, cut pvc
edge band sheet into specific width like 19mm, 20mm etc...

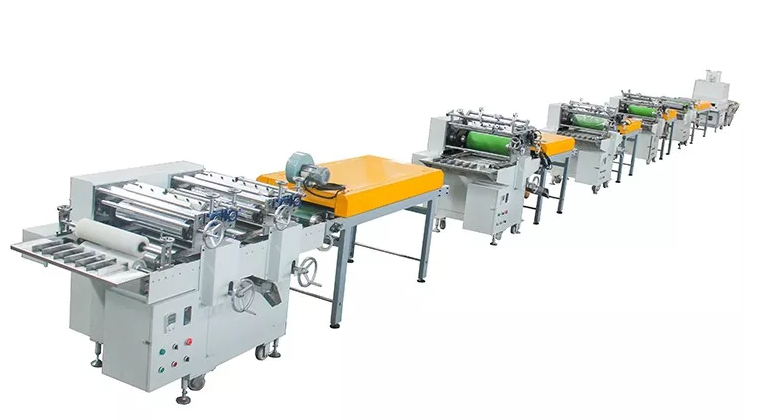

PVC edge band printing machine with UV coating
It’s applied for painting and coat UV varnish on PVC edge band. High glossy and matt effect can be made on this machine.
Process:
Edge band Releasing → double roller base color coating → IR drying → first color printing →IR drying → second color printing →IR drying → UV coating machine → IR leveling → UV dryer → coat protection layer →Cooling →Edge band winding

Features:
1. adopts world most advanced printing technique, optimized the design to get high quality printing.
2. high quality rubber rollers equipped, durable and give high quality printing.

Main parameters of PVC edge band printing machine:

Working width	240mm	400mm	600mm
Conveying speed	0-25m/min	0-25m/min	0-25m/min
Printing color	3 colors	3 colors	3 colors
Total power	22kw	30kw	45kw
Dimensions	15000*1400*1300mm	15000*1600*1300mm	20000*1800*1300mm
