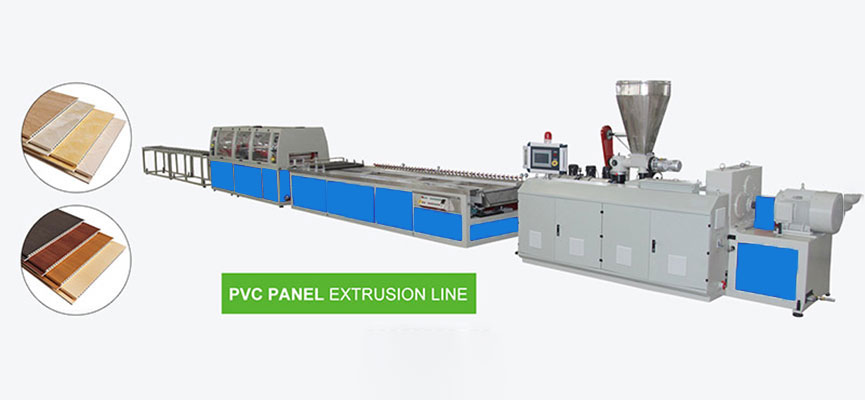

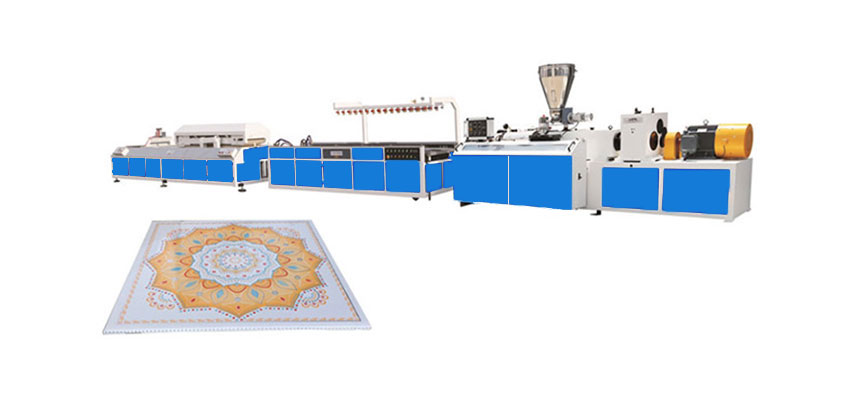

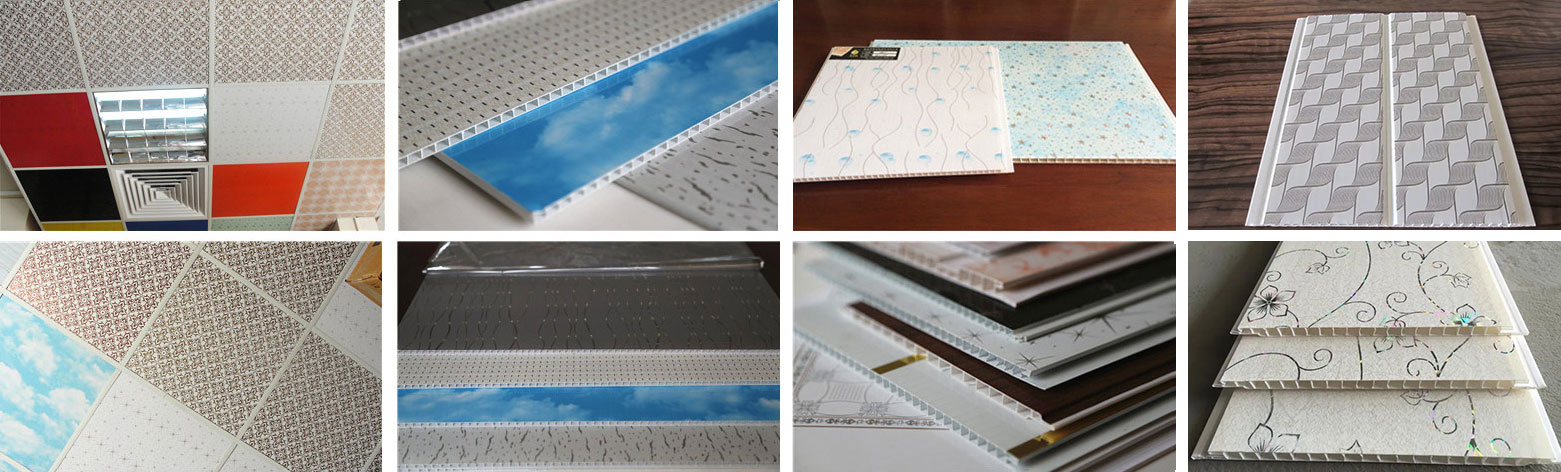

PVC wall panel production line is applied to produce PVC wall panel with width of 200,250,300,400,600mm and thickness from 7 to 10mm.

Main Features of PVC wall panel production line:
1.High speed, double output than common PVC ceiling production line, greatly decrease the labour cost and electricity cost and manage cost.
2.Extruder adopts PVC ceiling dedicated screw, make sure best plastisizing effect
3.Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed
4.Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level
5.The caco3 filler can up to 300phr, formula cost is greatly reduced.
6.Equipped with infrared tracking device which can eliminate the problem of fluctuation of extrusion flow rate, further can make sure get best product
7.Lower power consumption,it can save 25-30% electrical power consumption comparing with most kind PVC ceiling production line.
8.With online hot stamping, easy operation, saving labour.

Model of high speed PVC wall panel production line:

Model	SJSZ48/118 common	SJSZ53/128 high speed	SJSZ65/132 high speed
Applicable product width	200-250mm	200-300mm	20-600mm
Extruder model	SJSZ48/113	SJSZ53/128	SJSZ65/132
Capacity(kg/h)	about 2200(about 800 square meter/24h)	about 4000(about 1600 square meter/24h)	about 8000(about 3300 square meter/24h)
Main motor power(kw)	15	30	37

FAQ

1.What's the Warranty?
One year since installation completed. In the warranty period, in case any parts broken by uncontrolled factor, we will be responsible and send the parts immediately by courier or air cargo.

2.How to install the machines?
Upon customer's requirement, we can send technician to customer's factory for installation and training. Meantime, we can also send experience Chinese master to work at customer factory for 3 month
to one year or even longer time. So the Chinese technician will install machines, teach local workers about machine installation and operations and so on.

3.What kind payment terms?
We can accept multiple kind payment terms, like T/T, LC,D/P(advance payment required) etc.

Advantages

1.professional service team to provide comprehensive service to customer.
2.we only use top brand parts for machinery both on electric and mechanical parts
3.rich experience in the filed of PVC extrusion machines and surface finishing machines with more than 24 years experience
4.provide turkey solution from A to z including supply materials and sending Chinese master to work at customer factory
