Raw material & formulation

Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin.
Surface layer: ASA granule

Description final product & Output

Two layers PVC+ASA Co-extrusion Glazed tile;

Output:300-400kg/h(Depending on CaCO3 proportion)

Final product

Main tile:1set
Two layers PVC+ASA Roofing tile;
Width:720/880 /1040mm,Thickness: 2~3.0mm;
Wave distance:160mm; Wave height:28/30mm;
Wave length:220/250mm
Ridge tile:4sets

Machine

Qty.

1

Screw loader for extruder

1set

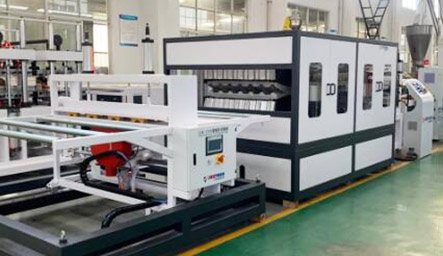

Glazed tile extrusion line

Ridge tile forming machine

2

Conical twin-screw extruder(PVC)

1set

3

Vacuum loader and drying hopper

1set

4

Single screw extruder(ASA)

1set

5

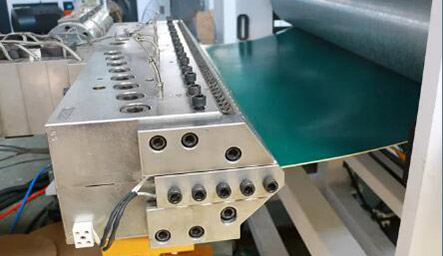

Extrusion mould and distributor

1set

6

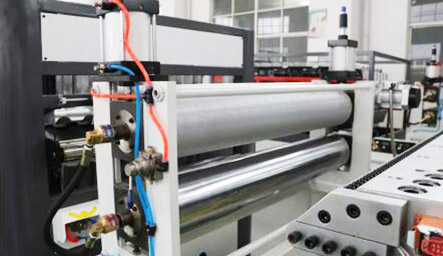

Embossing roller

1set

7

Temperature controller

1set

8

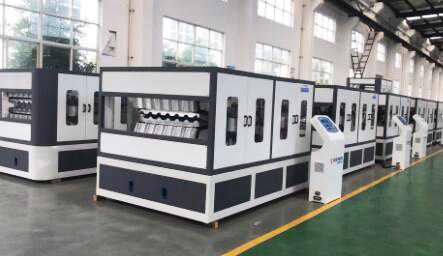

Glazed-tile forming machine

1set

9

Cutter

1set

10

Stacker

1set

11

Ridge tile Oven

1set

12

Ridge tile Forming machine and ridge tile mould

4set

13

Screw loader for Mixer

1set

Auxiliary equipment

14

Mixer unit

1set

15

Crusher

1set

16

Pulverizer

1set
