PVC waterstop profile production line
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail

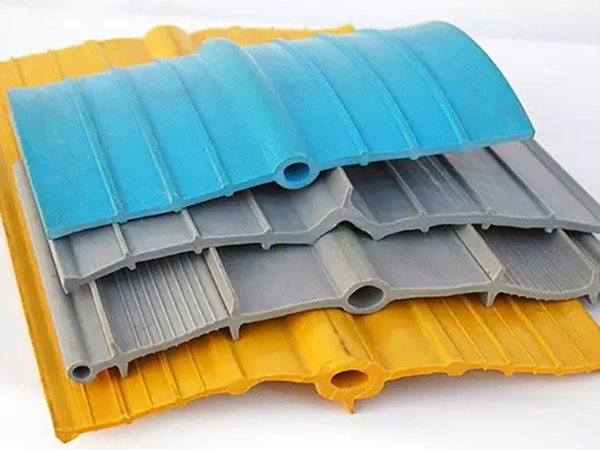

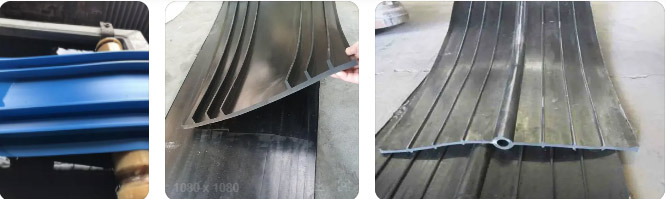

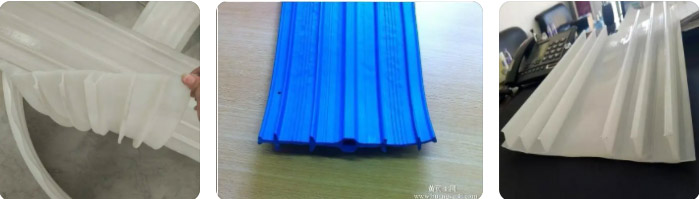

-PVC Waterstops are produced from high-grade PVC compounds. They are designed for sealing movement and construction joints in reinforced concrete structures.
-PVC Waterstops, used in concrete for the sealing of construction and expansion joints, are embedded in concrete, across and along the joint, to form a continuous watertight diaphragm that prevents the passage of fluid through the joint.
MAIN PARAMETERS OF PVC WATERSTOPS:
Width:150-400mm
Length: Fixed-length cut
Output: 150-160kg/h
Dimensions:According to the drawing
ENVIRONMENTAL CONDITION:
| Location |
Indoors |
|
Power Supply |
No dangerous area |
|
Humidity |
≤95% |
|
Temperature |
0-40ºC |
|
Power |
3-phase, 380V, 50Hz |
|
Total Installed Power |
≤100KW |
|
Cooling Water |
≤25ºC ≥0.3MPa, outdoor water tank: 10-20m3, water circulated with production line |
|
Compressed air |
0.3 m³ /min, >0.5MPa, |
|
Production Line Dimension |
20m*2.5m*2.8m |
Flow chart:

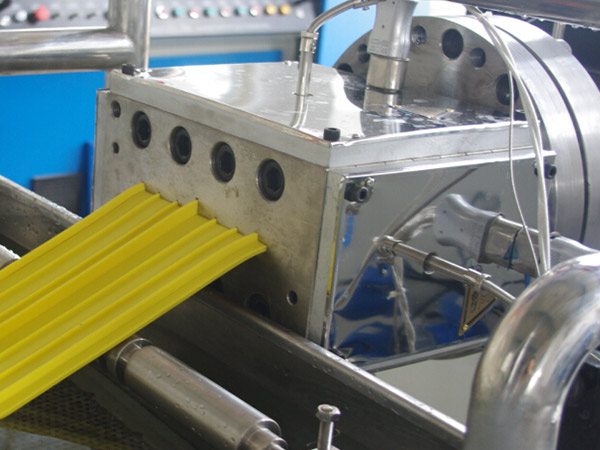

Mixer→Loader→Extruder→Mould→Cooling platform→Hauling machine→Punching machine→Cutting machine→Winder
