Conical twin extruder
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail
Main Technical Features

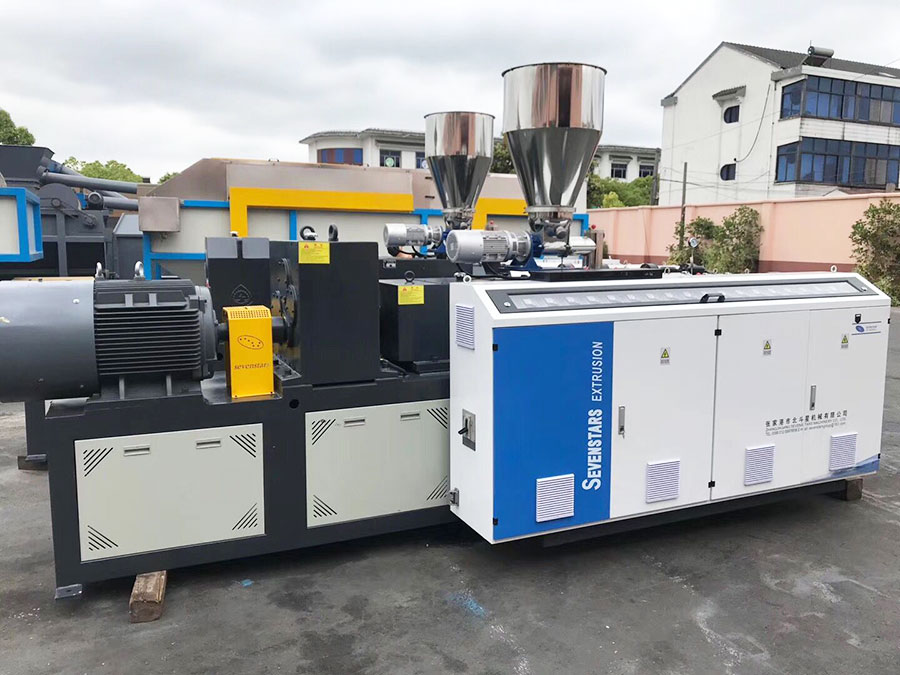

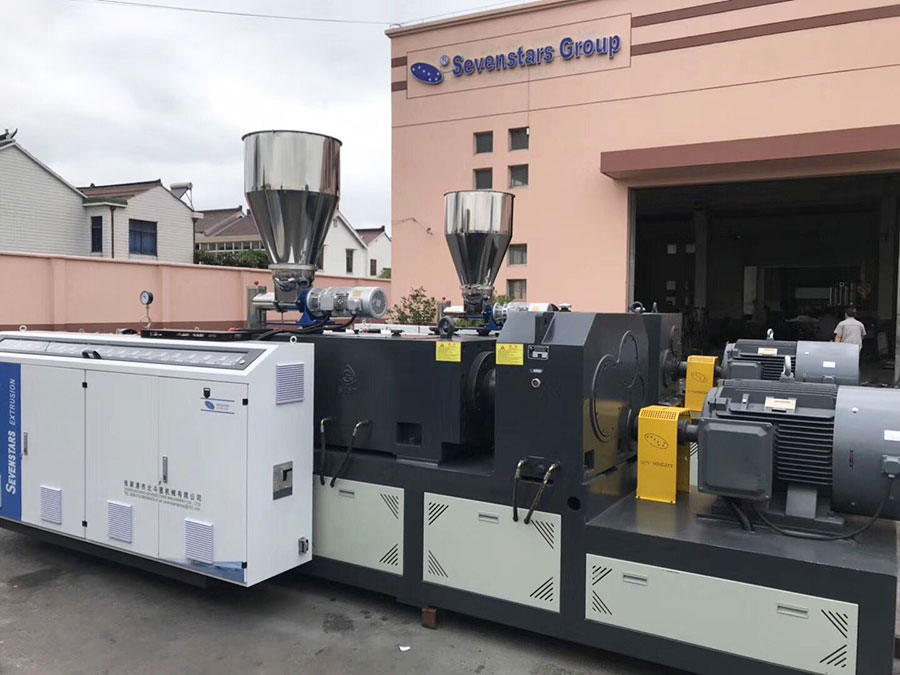

Conical twin screw plastic extruder double screw extruder
Conical twin screw plastic extruder double screw extruder is designed to produce rigid UPVC product, together with different downstream equipment, such as UPVC pipe, UPVC profile, UPVC board/sheet, WPC and so on. the processed material is powder format.
It has features of good plasticizing, lower shear force. And we can design twin screw extruder based on customer requirement, such as: PLC touch screen, specified brand electrics and so on
|
Model of extruder |
SJSZ51 |
SJSZ55 |
SJSZ65 |
SJSZ80 |
SJSZ92 |
|
Screw diameter(mm) |
51/105 |
55/110 |
65/132 |
80/156 |
92/188 |
|
Number of screw |
2 |
2 |
2 |
2 |
2 |
|
Screw speed |
1-32 |
1-40 |
1-34.7 |
1-36.9 |
1-32.9 |
|
Motor power |
18.5kw or 22kw |
30Kw |
37Kw |
55Kw |
90kw or 110Kw |
|
Output(kg/hour) |
120kg/hour |
180Kg/hour |
250kg/hour |
350kg/hour |
500-800kg/hour |
