Machine features:
Heavily printed film recycling machine

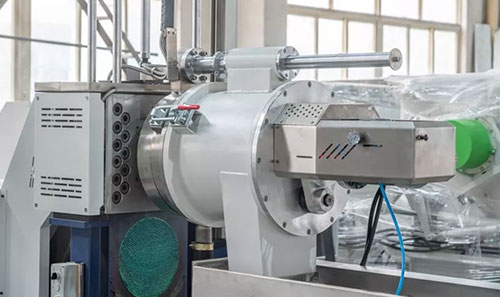

Filter before vacuum system achieves better degassing and filtering effect

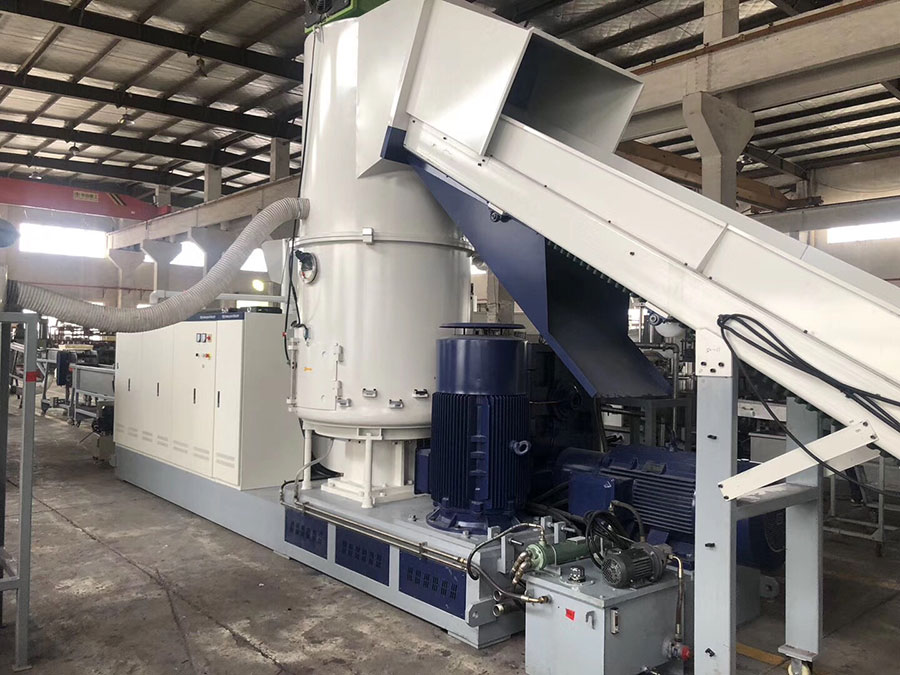

Material is cut, pre-dried, pre-heated, pre-homogenized and compacted in the shredding drum
Various materials can be processed directly without need of the upstream pre-shredding, resulting in a dramatic

Features of film/flake granulating plastic recycling machine:
Filter before vacuum system achieves better degassing and filtering effect
Material is cut, pre-dried, pre-heated, pre-homogenized and compacted in the shredding drum
Various materials can be processed directly without need of the upstream pre-shredding, resulting in a dramatic reduction in operational costs
Less power consumption cost per kilogram (film: 0.39kW/kg, flake: 0.35kW/kg), high throughput, reduced floor space occupation and operator attendance

How it works:
Screw charger uploading material by timer

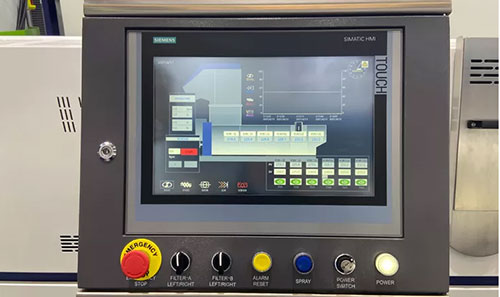

Feeder and extruder is controlled by inverter
Various L/D for Various material
Natures degassing, vacuums degassing adopting for moisture

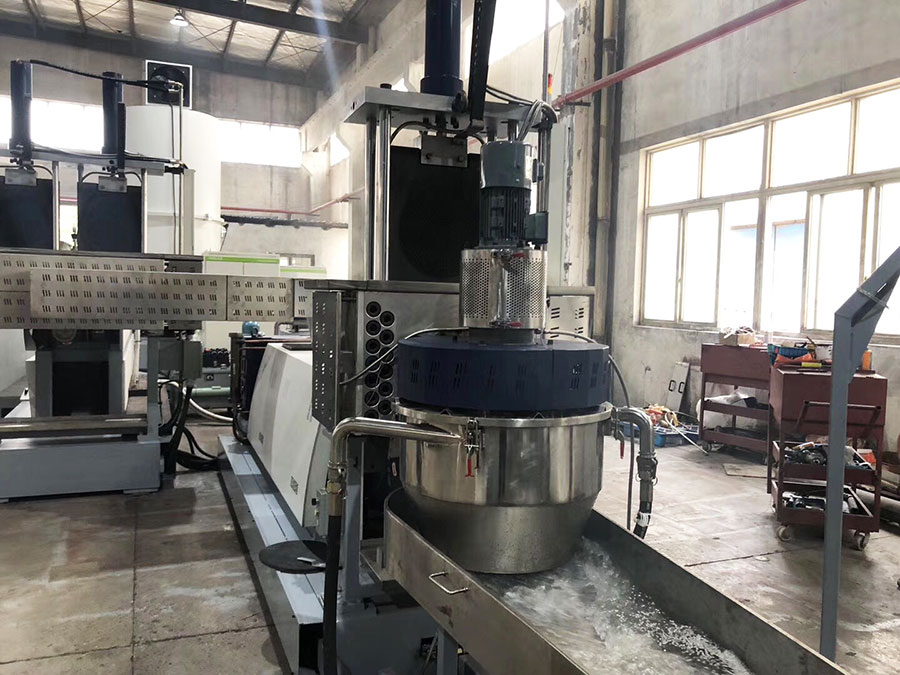

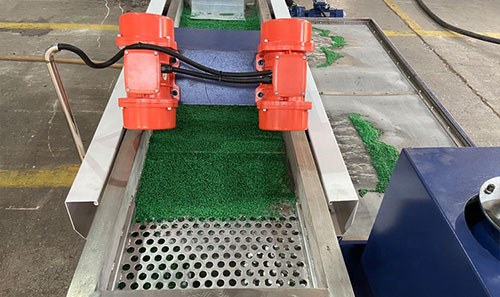

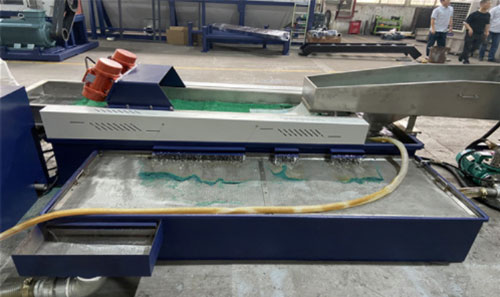

Water ring die face cutting for perfect pellets shape

Machine application:
Applicable plastic materials: PP, HDPE, LDPE, LLDPE, TPV, ABS and PS
Material shapes: film, bag and flake
Material types: woven bag, printed LDPE film, film (rolls, loose, bundled) waste agriculture film, foamed plastics (EPS) and raffia

Machine parameters:

Model	ML85	ML100	ML130	ML160	ML180
Screw diameter(mm)	85	100	130	160	180
Output(kg/h)	100-180	200-300	400-600	600-800	800-1000
