High moisture plastic pelletizing line
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail
Machine features:
1.The plastic extruder machine produced by our company adopts different screw designs and is suitable for the regeneration and granulation of a variety of plastics.
2.Screw barrel is specially hardened and very wear resistance.

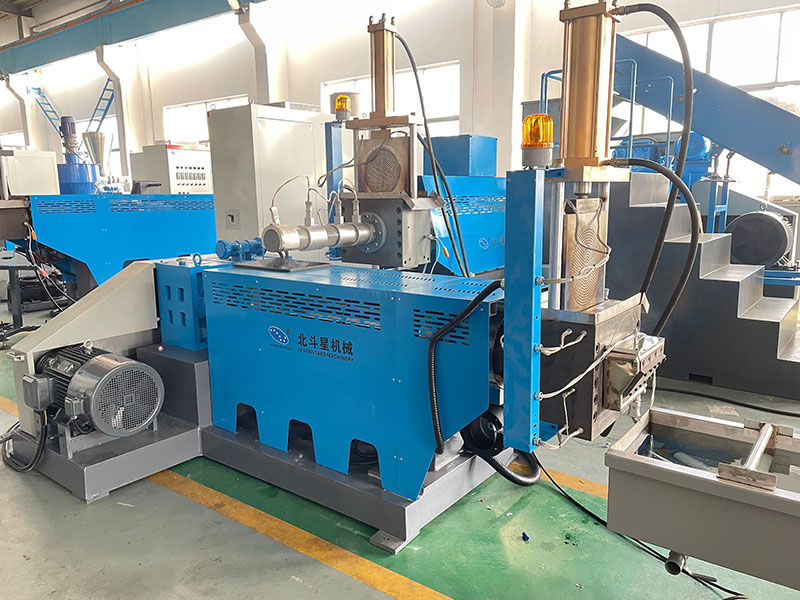

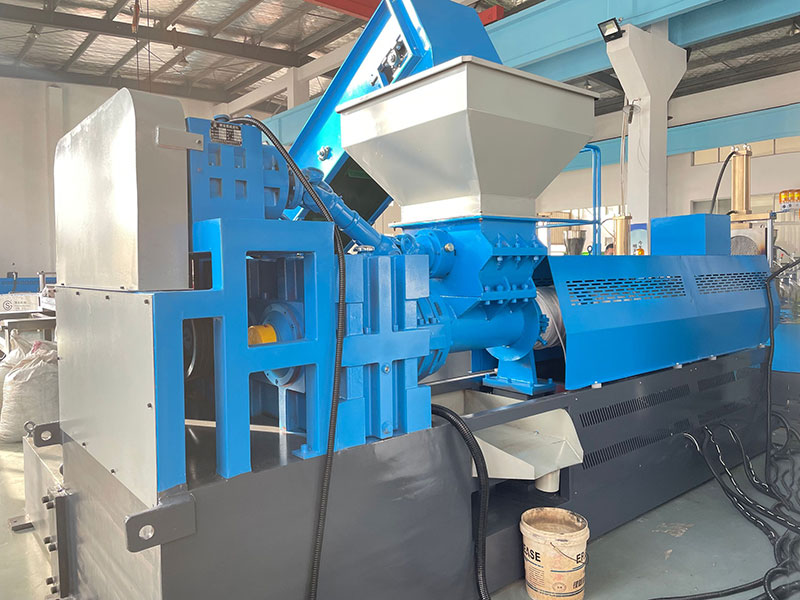

3.Two-stage (mother and baby) exhaust type plastic extrusion can repeatedly discharge the gas generated after the material is heated

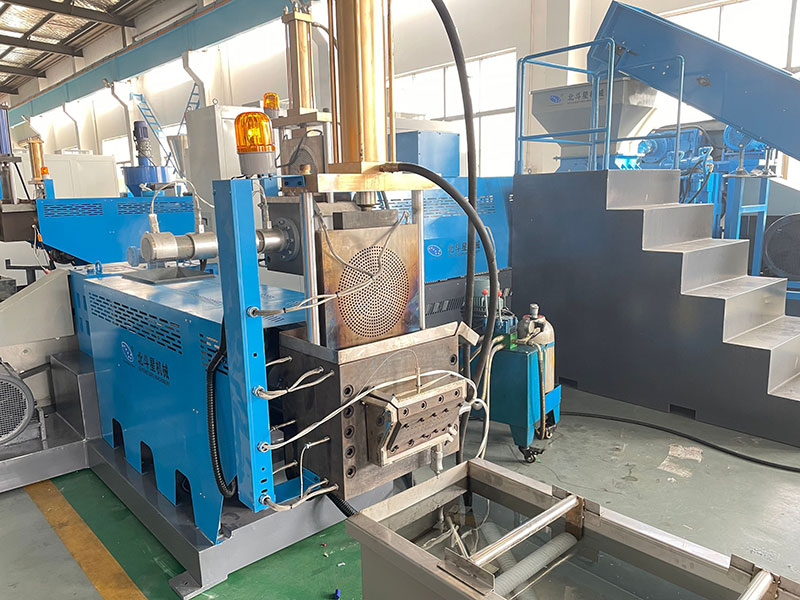

4.Both extruders are designed with filter replacement devices, , which will filter out the impurities in the material.
5.The pellets made by our machine are firmer, smoother and more pure.
6.Our plastic granulator is most suitable for regenerative extrusion granulation high pressure polyethylene (LDPE), polypropylene (PP), HDPE, LLDPE, ABS, polystyrene (PS), etc. Our plastic pellete making machine can process plastic film, plastic bottle, woven bag, washed plastic, post consumer or post industrial gross raw material, etc.
7.Some models are designed with reference to foreign technology and according to our international situation, and have been adopted by customers.
8.The plastic pelletizer layout can design “straight I” or "L-shaped"
9.15 years plastic recycling machine experience, factory directly full automatic waste plastic pelletizer machine.
10.Highest productivity and flexibility, low energy consumption, easiest operation.
Machine application:
- PE/PP films
- Fiber
- pp woven bags
agricultural film
bopp film
foam roll
foam sheet
food container
garbage bag
HDPE PP frabic
humid prewashed flakes
jumbo bag
net cover
non woven
PP PE printed film rolls
printed bubble film
printed food packaging
printed multilayer film
printed shrink film
printed waste bag
printed woven sacks
raffia
silk tape yarn fiber
stretch film
stretch films
waste bags
waste film
Machine parameters:
Mother and baby extruder machine configuration
（First stage extruder mother machine）
| Model |
Screw diameter (mm) |
Screw length (mm) |
Venting type |
Screw drive power(kw) |
Heating zone |
Heating power (Kw) |
Output (kg/h) |
|
SJ-120A |
120 |
2300 |
Single exhaust |
30-6 |
5 |
28 |
100-200 |
|
SJ-140A |
140 |
2300 |
37-6 |
6 |
40 |
150-300 |
|
|
SJ-140A |
140 |
2600 |
45-6 |
7 |
45 |
150-300 |
|
|
SJ-140A |
140 |
3600 |
Single exhaust |
55-6 |
9 |
65 |
180-375 |
|
SJ-150A |
150 |
3000 |
75-4 |
8 |
60 |
200-375 |
|
|
SJ-160A |
160 |
3000 |
75-4 |
8 |
65 |
230-400 |
|
|
SJ-180A |
200 |
4200 |
90-6 |
9 |
75 |
500-600 |
|
|
SJ-200A |
280 |
5000 |
160-6 |
12 |
140 |
800-1000 |
|
|

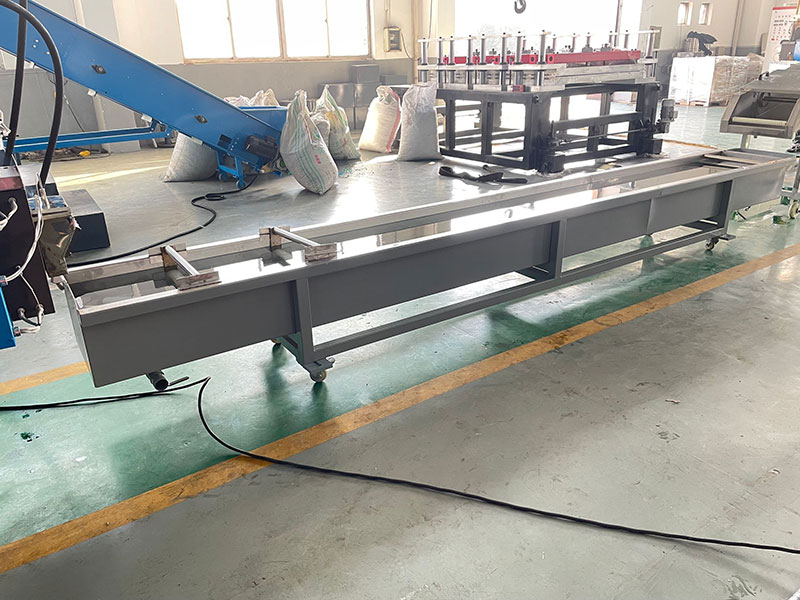

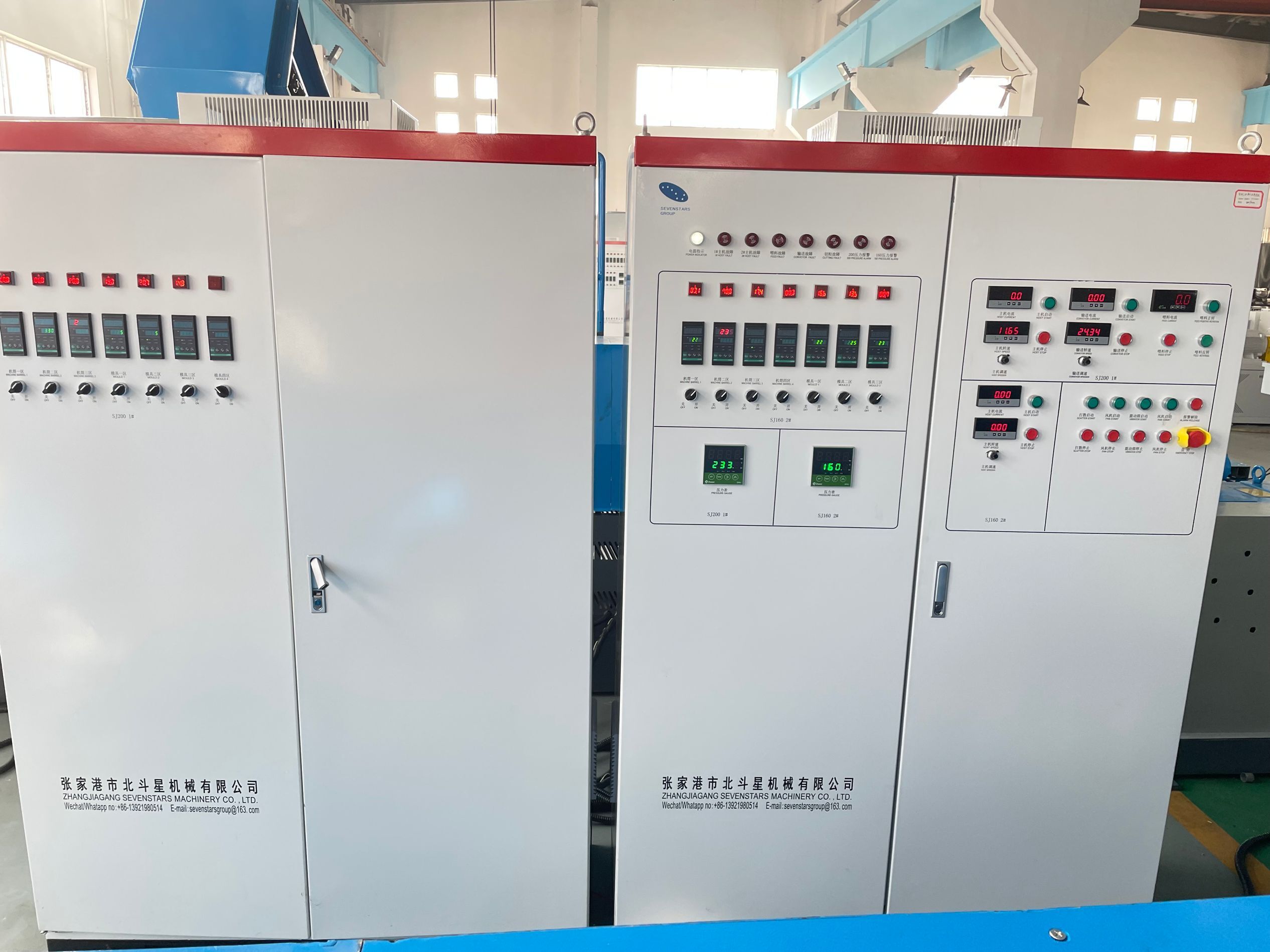

Remark: 225-450 Gear Box, independent electric cabinet, 5.5Kw-30pcs blade cutter, 4m stainless steel water cooling tank. |
|||||||
Remark: screw material is 38CrMoAlA, nitrogen harden, 40Cr barrel material.
The second stage baby machine gear box 225-330 standard type
| Model |
Screw diameter (mm) |
Screw length (mm) |
Venting type |
Screw drive power(kw) |
Heating zone |
Heating power (Kw) |
|
SJ-120B |
120 |
1500 |
Single exhaust |
15-4 |
3 |
12 |
|
SJ-140B |
140 |
1800 |
Single exhaust |
22-4 |
4 |
18 |
|
SJ-200B |
200 |
1600 |
None |
45-4 |
5 |
25 |
|
SJ-220B |
220 |
2200 |
None |
55-6 |
6 |
35 |
