Double shaft shredder
- Direct supply from the manufacturer
- Whatapp number：+86-13921980514
- E-mail：sevenstarsgroup@yeah.net
Detail

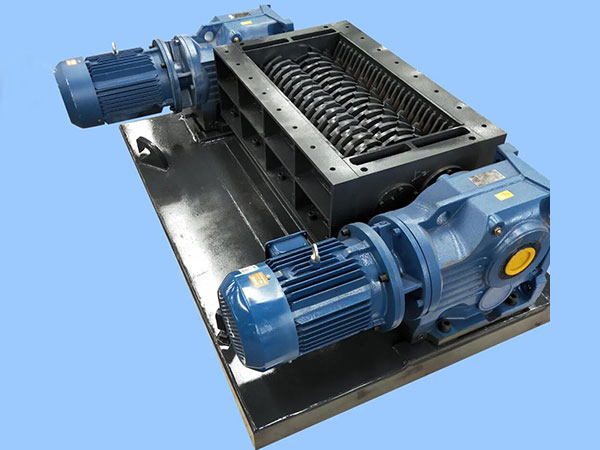

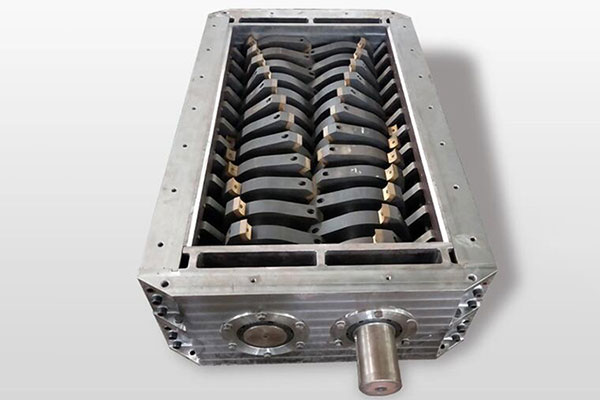

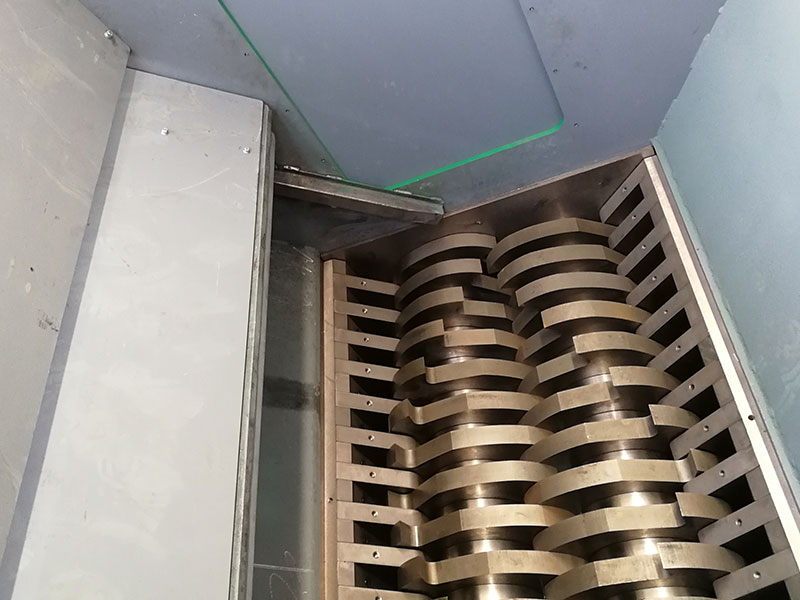

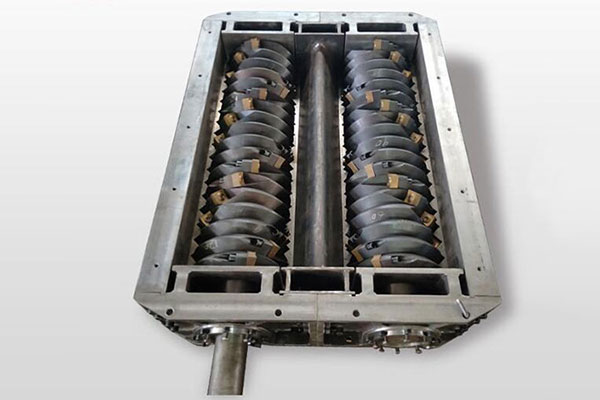

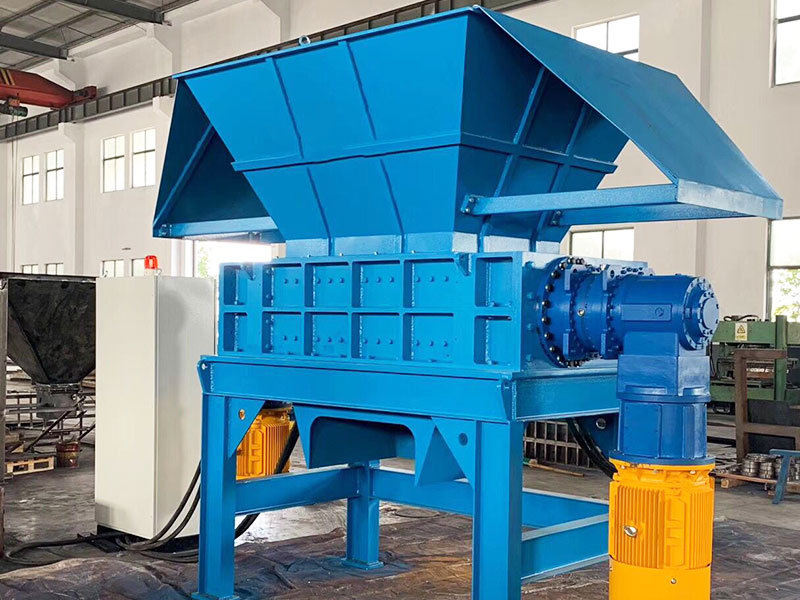

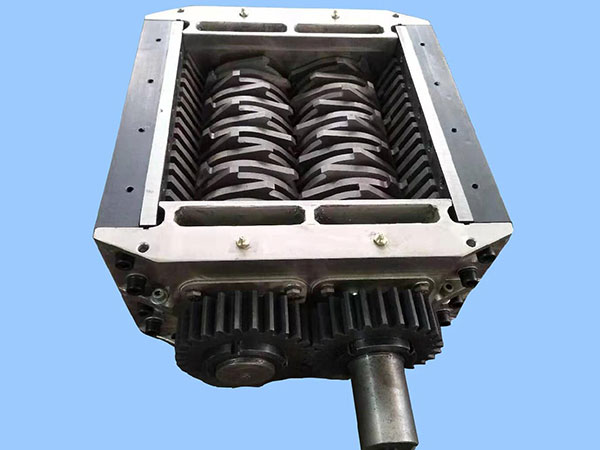

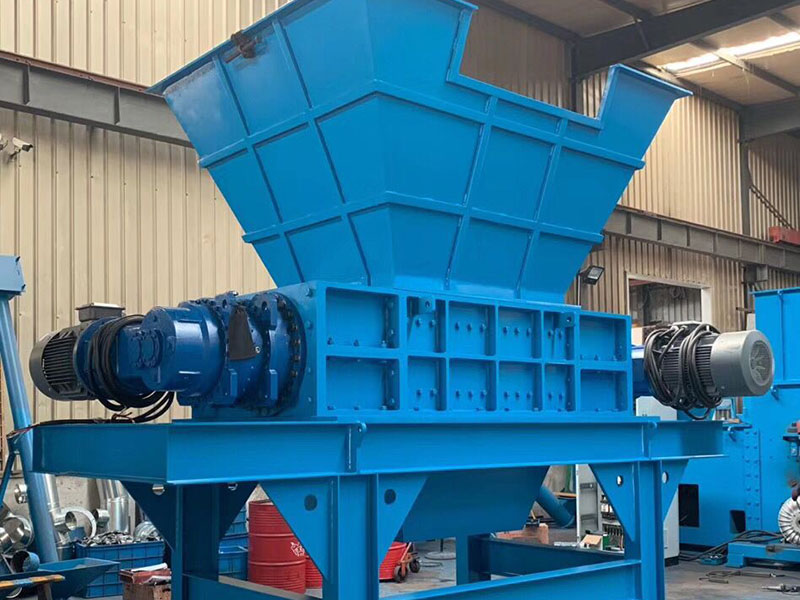

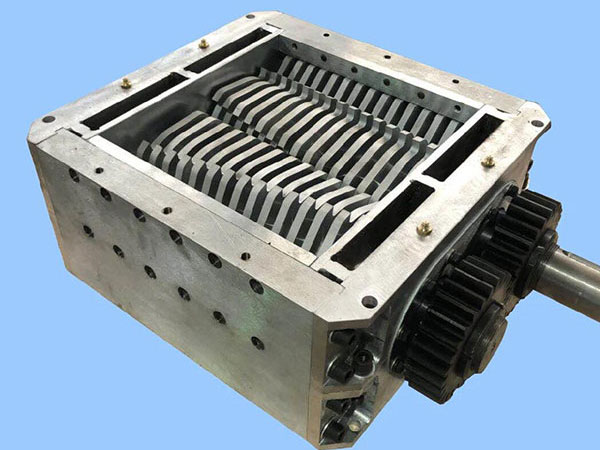

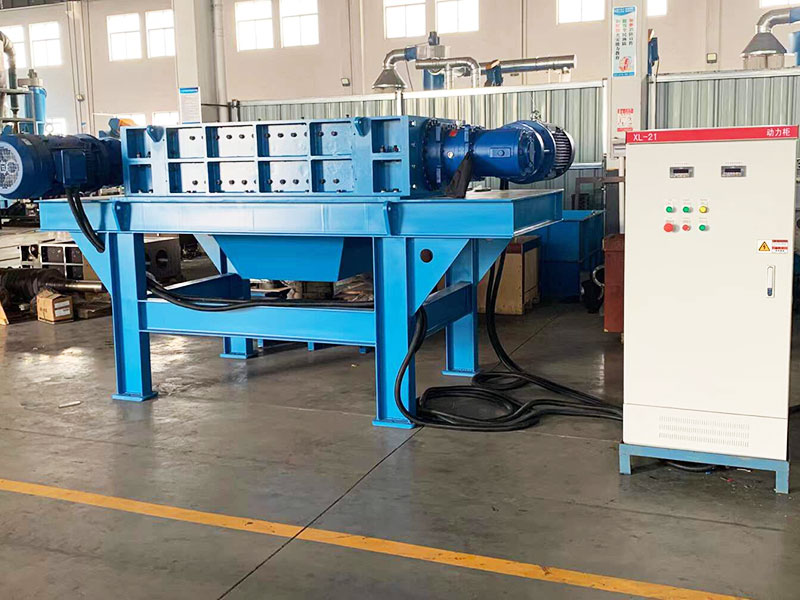

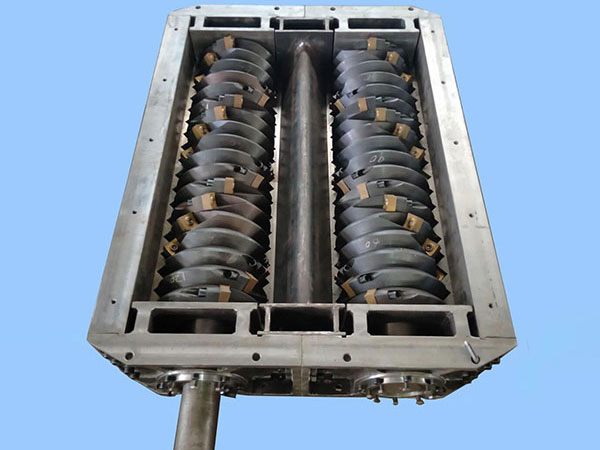

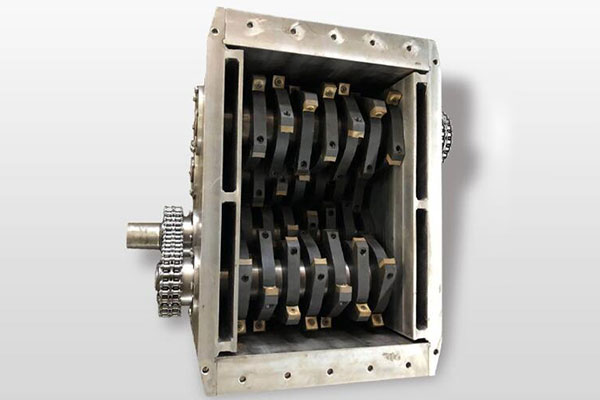

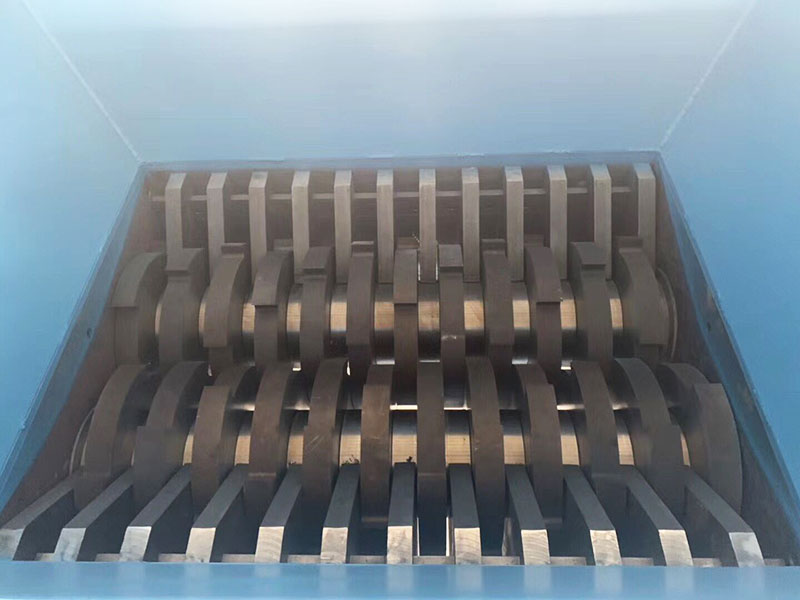

GL series two-shaft shredder is a low speed and high torque industrial shredder ,it is saving energy. This dual shearing shredder does not have a screen unit. After material is fed into the hopper, material is handled using two counter rotating blades, then directly discharged. Although the output particle size is random, the two shaft shredder features a faster shredding speed and a higher throughput than other shredders.

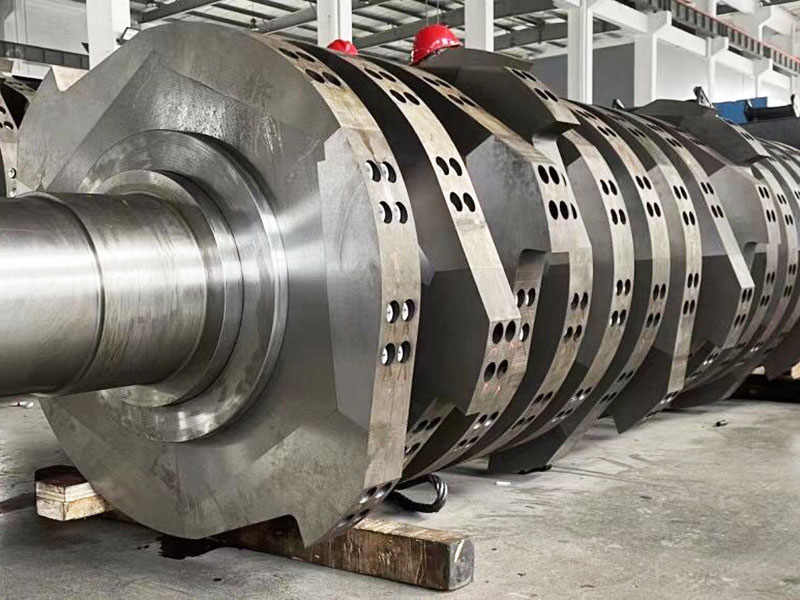

The industrial shredder can be custom tailored to suit your material and requirements to ensure maximum economic and production benefits. The reducer and rotor utilize Germany standard DIN5480, and a Siemens PLC control offers automatic detection and overload protection. The features is that the large transmission torque, reliable connections, low rotation speed, low noise and low maintenance cost.
Application:
Organic waste
tires,
plastic
drums,
metal drums,
e-waste
Car shell
Metal materials
|
Model |
Motor power(kw) |
Main blade rotation diameter(mm) |

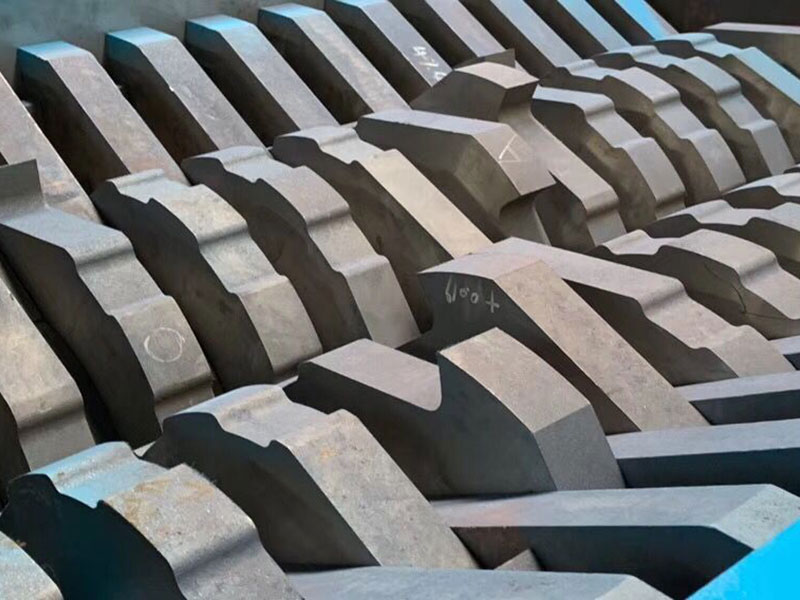

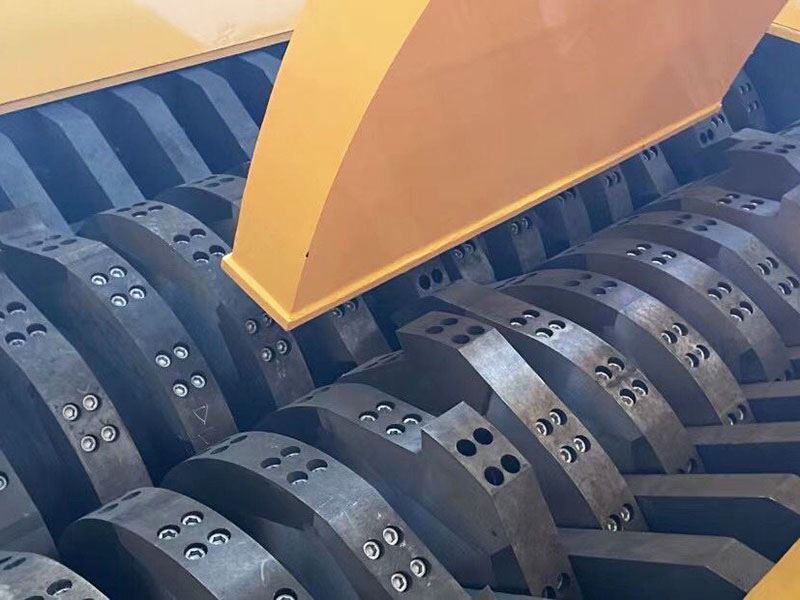

Main blade material |
Main blade quantity(pcs) |
Equipment weight(kg) |
|
GL600 |
2x15KW |
250mm or customized |
H13/V6/SKD-11 |
15pcs or or customized |
2500kg |
|
GL800 |
2x30KW |
340mm or customized |
H13/V6/SKD-11 |
20 pcs or customized |
3200kg |
|
GL1000 |
2x30KW |
400mm or customized |
H13/V6/SKD-11 |
25pcs or customized |
4200kg |
|
GL1200 |
2x30KW |
450mm or customized |
H13/V6/SKD-11 |
30pcs or customized |
5200kg |
|
GL1400 |
2x37KW |
450mm or customized |
H13/V6/SKD-11 |
35pcs or customized |
6500kg |
|
GL1600 |
2x45KW |
500mm or customized |
H13/V6/SKD-11 |
40pcs or customized |
7800kg |
